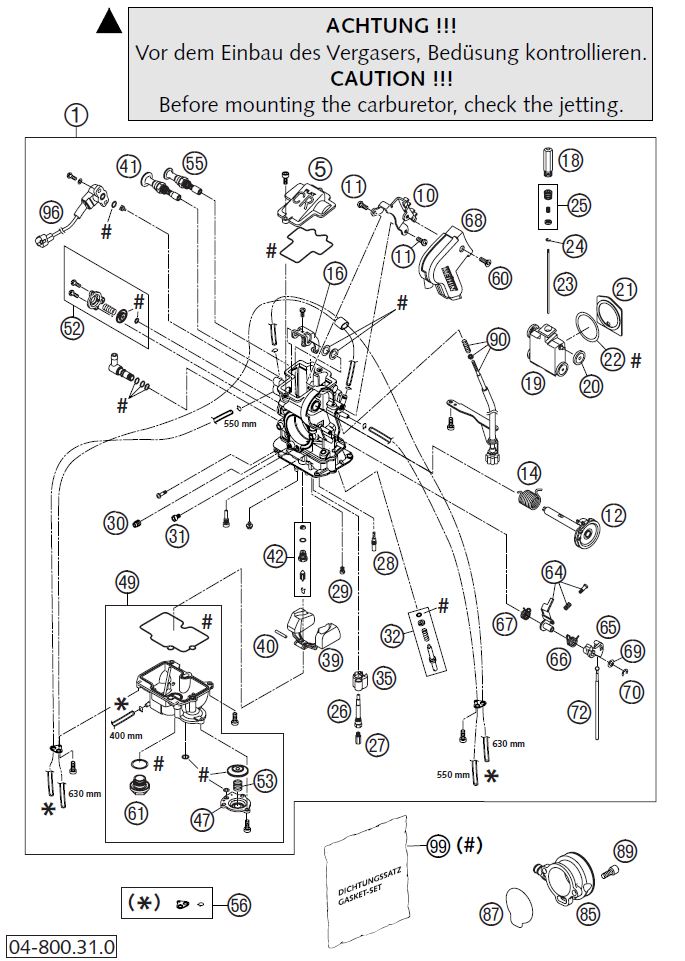

Karburátor - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	80031001000CARBURETOR KEIHIN FCR-MX39 04	25 247 Kč	ks
1.	80031001100CARBURETOR KEIHIN FCR-MX41 04	26 198 Kč	ks
1.	80031001200CARBURETOR KEIHIN FCR-MX41 04	26 766 Kč	ks
5.	57331027000% CARBURETOR COVER 2002	644 Kč	ks
10.	57331080000BRACKET PLATE FOR THR. CABLE	852 Kč	ks
11.	57331055000SCREW M 5 X 8	72 Kč	ks
12.	57331046000THROTTLE SHAFT CPL.	1 667 Kč	ks
14.	57331046050COIL SPRING THROTTLE SHAFT	226 Kč	ks
16.	57331035051LINK ARM THROTTLE VALVE CPL.	1 667 Kč	ks
18.	59031029006SLIDE STOP L=44MM 04	192 Kč	ks
19.	57331035000THROTTLE VALVE CPL.	3 345 Kč	ks
20.	59031035050BUSHING THROTTLE VALVE	192 Kč	ks
21.	57331035053GASKET PLATE THROTTLE VALVE	4 183 Kč	ks
22.	59031035052GASKET WASHER THROTTLE VALVE	192 Kč	ks
23.	57331034300JET NEEDLE KEIHIN OBEKR	441 Kč	ks
23.	59031023200JET NEEDLE KEIHIN OBDVT	375 Kč	ks
23.	590310340VR% JET NEEDLE KEIHIN OBDVR	529 Kč	ks
24.	59031029000BAR CLIP	60 Kč	ks
25.	57331032000NEEDLE SET SCREW CPL.	511 Kč	ks
26.	59031121000NEEDLE JET FCR-MX	375 Kč	ks
27.	54531623160MAIN JET 160 KEIHIN	243 Kč	ks
27.	54531623162MAIN JET 162 KEIHIN	243 Kč	ks
27.	54531623165MAIN JET 165 KEIHIN	243 Kč	ks
27.	54531623168MAIN JET 168 KEIHIN	243 Kč	ks
27.	54531623170MAIN JET 170 KEIHIN	243 Kč	ks
27.	54531623172MAIN JET 172 KEIHIN	243 Kč	ks
27.	54531623175MAIN JET 175 KEIHIN	243 Kč	ks
27.	54531623178MAIN JET 178 KEIHIN	243 Kč	ks
27.	54531623180MAIN JET 180 KEIHIN	243 Kč	ks
27.	54531623182MAIN JET 182 KEIHIN	243 Kč	ks
27.	54531623185MAIN JET 185 KEIHIN	243 Kč	ks
27.	54531623188MAIN JET 188 KEIHIN	243 Kč	ks
27.	54531623190MAIN JET 190 KEIHIN	243 Kč	ks
28.	54531607045IDLE JET 45 KEIHIN	243 Kč	ks
28.	54531607038IDLE JET 38 KEIHIN	243 Kč	ks
28.	54531607040IDLE JET 40 KEIHIN	243 Kč	ks
28.	54531607042IDLE JET 42 KEIHIN	243 Kč	ks
29.	59031051085STARTER JET 85	243 Kč	ks
30.	57331007100IDLE AIR JET 100 KEIHIN	286 Kč	ks
31.	57331037200MAIN AIR JET 200 KEIHIN	269 Kč	ks
32.	59031017100ADJUST SCREW CPL. FCR-MX	378 Kč	ks
35.	57331085000BUFFER PLATE	252 Kč	ks
39.	57331009000FLOAT CPL.	1 200 Kč	ks
40.	57331008000ARM PIN FLOAT	137 Kč	ks
41.	57331075000HOT-STARTER VALVE CPL.	1 790 Kč	ks
42.	57331020000NEEDLE VALVE CPL.	769 Kč	ks
47.	57331060000COVER ACCELERATOR PUMP	563 Kč	ks
49.	80031011044FLOAT CHAMBER CPL. SET 04	3 609 Kč	ks
52.	57331090000AIR CUT VALVE 2002	1 400 Kč	ks
53.	59031059000COIL SPRING	192 Kč	ks
55.	57331048000STARTER VALVE CPL.	1 200 Kč	ks
56.	80031098000BREATH.HOSE FCR-MX KEIHIN CPL.	1 108 Kč	ks
60.	0965050103FLAT HEAD SCREW DIN0965-M 5X10	29 Kč	ks
61.	57331014000HOLDING BOLT	443 Kč	ks
64.	57331062000INTERMEDIATE LEVER CPL.	495 Kč	ks
65.	57331056000LINK LEVER	252 Kč	ks
66.	57331059000SPRING LINK LEVER	226 Kč	ks
67.	57331159000SPRING INTERMEDIATE LEVER	226 Kč	ks
68.	57331038000CARBURETOR COVER	358 Kč	ks
69.	57331087000WASHER LINK LEVER	72 Kč	ks
70.	57331084000E-CLIP	72 Kč	ks
72.	57331061000ROD ACCELERATOR PUMP	495 Kč	ks
85.	59031040200INTAKE FUNNEL FCR/FCR-MX 02	157 Kč	ks
87.	59031040010O-RING FOR INTAKE FUNNEL	134 Kč	ks
89.	0912050123AH SCREW DIN0912-M 5X12	29 Kč	ks
90.	80031025000STOP SCREW CPL. FCR-MX 04	1 135 Kč	ks
96.	57331077000TPS-SENSOR FCRMX 140MM 2002	5 558 Kč	ks
99.	57331099000GASKET SET FCR-MX KEIHIN	1 691 Kč	ks
