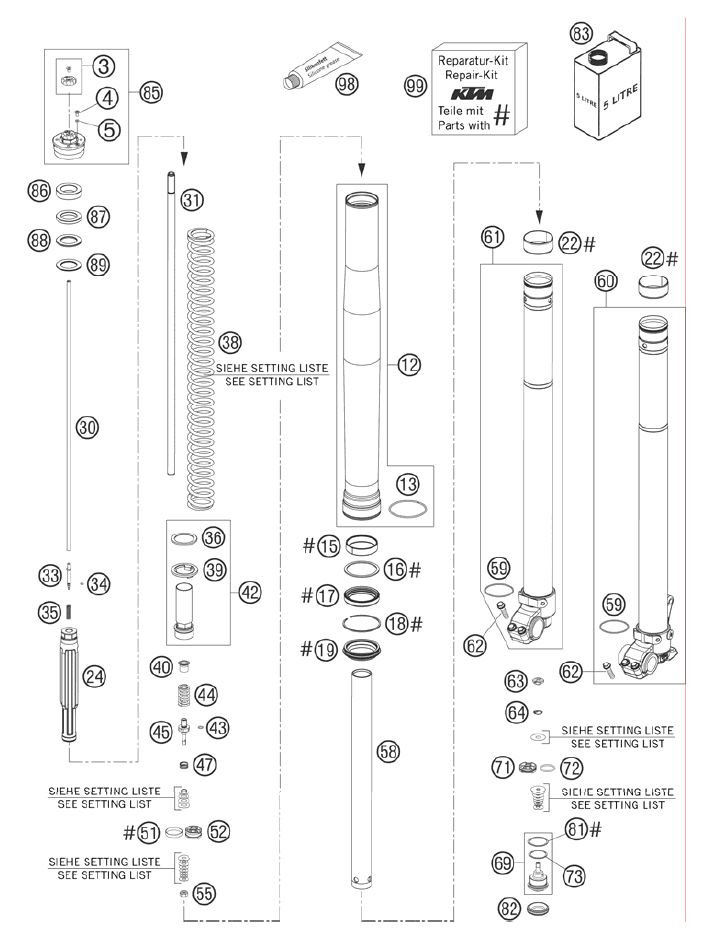

Přední vidlice v rozloženém stavu - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
3.	48600564SSETTING KNOB + SCREW	401 Kč	ks
4.	48600481VENT SCREW M4X8	59 Kč	ks
5.	48600009O-RING NBR 3,7X1,6	29 Kč	ks
12.	48600693OUTER TUBE L577 D54/60MM 2L BL	6 394 Kč	ks
13.	48600016GUIDING RING D=58MM	83 Kč	ks
15.	48600429DU-BUSH D48XD52X12DDL02	354 Kč	ks
16.	48600013SUPPORT RING 50 X 57,6 X 1,5	133 Kč	ks
17.	48600347OIL SEAL RING 48X57,8X9,5 03	311 Kč	ks
18.	48600070LOCK WASHER SB58	83 Kč	ks
19.	48600400DUST CAP D=48 58,4X11,8	304 Kč	ks
22.	48600428DU-BUSH D47XD49X20DDL02	354 Kč	ks
24.	48600557SHYDR.STOP L=200 D=31,9 CPL. 07	942 Kč	ks
33.	48600277ADJUSTER NEEDLE 07	246 Kč	ks
34.	48600298O-RING 2X1,5 NBR	29 Kč	ks
35.	48600444REBOUND SPRING C=4N/MM	100 Kč	ks
36.	48600113WASHER 32X42X2,5	118 Kč	ks
38.	91410006SSPRING 4,4N/MM SET D=5,1MM	3 083 Kč	ks
38.	91410019SSPRING 4,6N/MM SET D=5,1MM	2 948 Kč	ks
38.	91410060SSPRING 4,2 N/MM SET D=5,0MM	2 721 Kč	ks
39.	48600021INTERM. RING 26,2 X 43 X 3	246 Kč	ks
40.	48600525GUIDING BUSH REBOUND SPRING	246 Kč	ks
42.	48600556SSCREW SLEEVE M29,3X1 L=90 CPL.	1 385 Kč	ks
43.	48600299O-RING 6X1,2 NBR	29 Kč	ks
44.	48600511REBOUND SPRING L=32 C=17	105 Kč	ks
45.	48600513TAP REBOUND 07	284 Kč	ks
47.	35480377SPRING CHECK VALVE D=0,5	100 Kč	ks
51.	48600060PISTON RING 5X1X84	171 Kč	ks
52.	48600042PISTON REBOUND D=27,7	533 Kč	ks
55.	40540486NUT M6X0,5 REBOUND	100 Kč	ks
58.	48600081TUBE 29,3X1X390 D=8,5MM	2 562 Kč	ks
59.	48600048O-RING NBR 46 X 2	43 Kč	ks
60.	48600237S2AXLE CLAMP L/S + TUBE CPL. 08	9 865 Kč	ks
61.	48600238S3AXLE CLAMP R/S + TUBE CPL. 08	9 551 Kč	ks
62.	0025080256HH COLLAR SCREW M8X25 TX40	74 Kč	ks
63.	48600163CHECK VALVE NUT M6X0,5 D=2	100 Kč	ks
64.	48600202SPRING CHECK VALVE D=0,7	100 Kč	ks
69.	48600586STAP COMPRESSION CPL. 07	850 Kč	ks
71.	48600047PISTON COMPRESSION D=27,9	533 Kč	ks
72.	46811499O-RING NBR 21X2	37 Kč	ks
73.	35480320O-RING NBR 24X2	37 Kč	ks
81.	48600004COPPER WASHER 29,5X33,5X1	37 Kč	ks
82.	48600141RUBBER CAP D=35MM	37 Kč	ks
83.	48600401S1FORK OIL SAE5 5L 2005	2 712 Kč	ks
85.	48600431S1PRE-LOAD ADJ. M51X1,5 CPL. 07	2 951 Kč	ks
86.	48600038SPACER 42X26,5X10	123 Kč	ks
87.	48600037SPACER 42X26,5X5	105 Kč	ks
88.	48600036SPACER 42X26,5X2,5	86 Kč	ks
89.	48600053SPACER 42X26,5X1,5	86 Kč	ks
98.	R14013REPAIR-KIT GASKET 486 0 MXMA 06	2 082 Kč	ks
