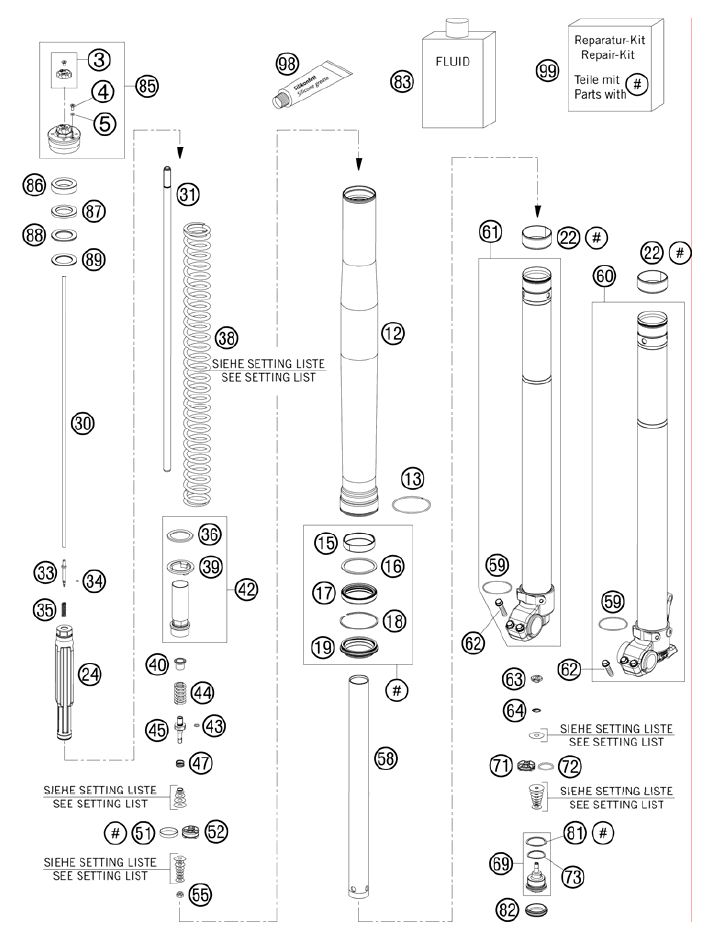

Přední vidlice v rozloženém stavu - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
3.	48600564SSETTING KNOB + SCREW	401 Kč	ks
4.	48600481VENT SCREW M4X8	59 Kč	ks
5.	48600009O-RING NBR 3,7X1,6	29 Kč	ks
12.	48600693OUTER TUBE L577 D54/60MM 2L BL	6 394 Kč	ks
13.	48600016GUIDING RING D=58MM	83 Kč	ks
15.	48600429DU-BUSH D48XD52X12DDL02	354 Kč	ks
16.	48600013SUPPORT RING 50 X 57,6 X 1,5	133 Kč	ks
17.	48600347OIL SEAL RING 48X57,8X9,5 03	311 Kč	ks
18.	48600070LOCK WASHER SB58	83 Kč	ks
19.	48600400DUST CAP D=48 58,4X11,8	304 Kč	ks
22.	48600428DU-BUSH D47XD49X20DDL02	354 Kč	ks
24.	48600557SHYDR.STOP L=200 D=31,9 CPL. 07	942 Kč	ks
30.	48600562ADJUSTMENT TUBE L=495	627 Kč	ks
31.	48600561PISTON ROD D=12 L=529 ALU	2 134 Kč	ks
33.	48600277ADJUSTER NEEDLE 07	246 Kč	ks
34.	48600298O-RING 2X1,5 NBR	29 Kč	ks
35.	48600444REBOUND SPRING C=4N/MM	100 Kč	ks
36.	48600113WASHER 32X42X2,5	118 Kč	ks
38.	91410006SSPRING 4,4N/MM SET D=5,1MM	3 083 Kč	ks
38.	91410019SSPRING 4,6N/MM SET D=5,1MM	2 948 Kč	ks
38.	91410020SSPRING 4,8N/MM SET D=5,25 MM	2 721 Kč	ks
39.	48600021INTERM. RING 26,2 X 43 X 3	246 Kč	ks
40.	48600525GUIDING BUSH REBOUND SPRING	246 Kč	ks
42.	48600556SSCREW SLEEVE M29,3X1 L=90 CPL.	1 385 Kč	ks
43.	48600299O-RING 6X1,2 NBR	29 Kč	ks
44.	48600511REBOUND SPRING L=32 C=17	105 Kč	ks
45.	48600513TAP REBOUND 07	284 Kč	ks
47.	35480377SPRING CHECK VALVE D=0,5	100 Kč	ks
51.	48600060PISTON RING 5X1X84	171 Kč	ks
52.	48600042PISTON REBOUND D=27,7	533 Kč	ks
55.	40540486NUT M6X0,5 REBOUND	100 Kč	ks
58.	48600081TUBE 29,3X1X390 D=8,5MM	2 562 Kč	ks
59.	48600048O-RING NBR 46 X 2	43 Kč	ks
60.	48600402S2AXLE CLAMP L/S + TUBE CPL. 08	7 623 Kč	ks
61.	48600238S3AXLE CLAMP R/S + TUBE CPL. 08	9 551 Kč	ks
62.	0025080256HH COLLAR SCREW M8X25 TX40	74 Kč	ks
63.	48600163CHECK VALVE NUT M6X0,5 D=2	100 Kč	ks
64.	48600202SPRING CHECK VALVE D=0,7	100 Kč	ks
69.	48600586STAP COMPRESSION CPL. 07	850 Kč	ks
71.	48600047PISTON COMPRESSION D=27,9	533 Kč	ks
72.	46811499O-RING NBR 21X2	37 Kč	ks
73.	35480320O-RING NBR 24X2	37 Kč	ks
81.	48600004COPPER WASHER 29,5X33,5X1	37 Kč	ks
82.	48600141RUBBER CAP D=35MM	37 Kč	ks
83.	48600401S1FORK OIL SAE5 5L 2005	2 712 Kč	ks
85.	48600431S1PRE-LOAD ADJ. M51X1,5 CPL. 07	2 951 Kč	ks
86.	48600038SPACER 42X26,5X10	123 Kč	ks
87.	48600037SPACER 42X26,5X5	105 Kč	ks
88.	48600036SPACER 42X26,5X2,5	86 Kč	ks
89.	48600053SPACER 42X26,5X1,5	86 Kč	ks
98.	T511SILICONE GREASE F. DUST STRI	988 Kč	ks
