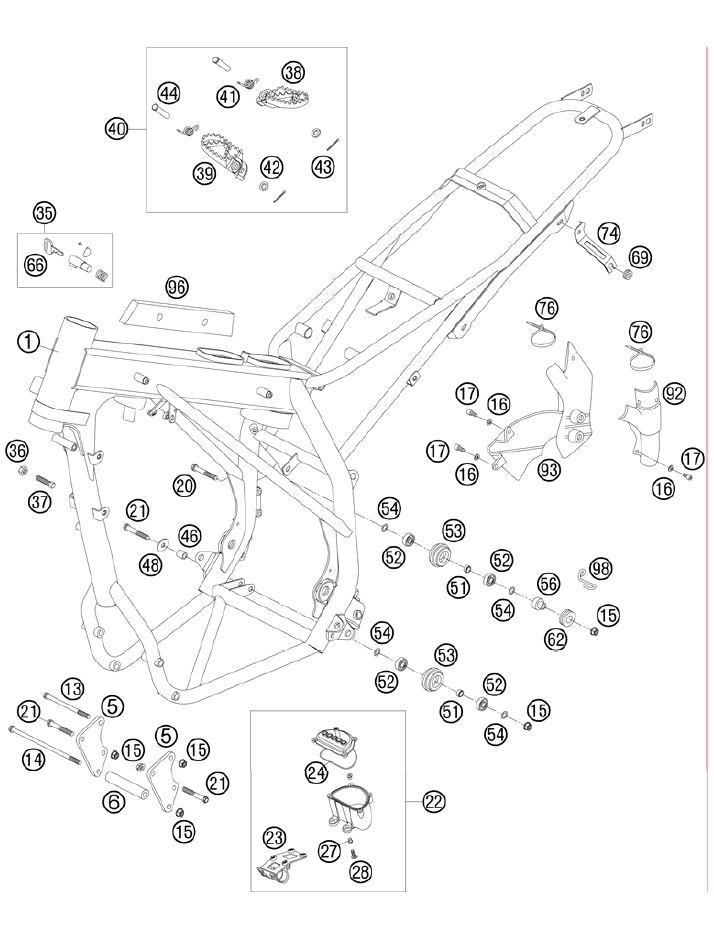

Rám - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	8000300110030FRAME FE/FS-EU BLACK (HB04)	41 696 Kč	ks
5.	80003005000ENGINE MOUNTING 04	1 007 Kč	ks
6.	80003006000SPACER ENGINE MOUNT. L=87MM 04	229 Kč	ks
13.	80003013000ENGINE BRACKET SCREW M8X110 04	219 Kč	ks
14.	80003014000ENGINE BRACKET SCREW M8X180 04	246 Kč	ks
15.	54310086200SELF LOCKING NUT M8 10.9	44 Kč	ks
16.	0125050003WASHER DIN0125-A 5,3	22 Kč	ks
17.	0912050103AH SCREW DIN0912-M 5X10	29 Kč	ks
20.	0025080556HH COLLAR SCREW M8X55 TX40	86 Kč	ks
21.	0025080506HH COLLAR SCREW M8X50 TX40	86 Kč	ks
22.	80031096044INTERCEPTING TANK CPL.	630 Kč	ks
23.	80031096050BRACKET F.INTERCEPTING TANK 05	315 Kč	ks
24.	0770800021O-RING 80,00X2,00 VITON	77 Kč	ks
27.	58314060050SPACER BUSH. F. SPEEDOMET.BRA.	71 Kč	ks
28.	0024060156HH COLLAR SCREW M6X15 TX30	43 Kč	ks
35.	80003035000STEERING HEAD LOCK 04	587 Kč	ks
36.	0934080003HEXAGON NUT DIN0934-M 8	25 Kč	ks
37.	59001037000SPECIAL SCREW M8X26 WS=10	68 Kč	ks
38.	59003040250FOOT PED L/S SILVER 02	1 234 Kč	ks
39.	59003041250FOOT PED R/S SILVER 02	1 234 Kč	ks
40.	5030314013390FOOTREST L.+R. CPL. 03	2 097 Kč	ks
41.	54603041000FOOTREST SPRING L/S & R/S	93 Kč	ks
42.	125100003WASHER DIN0125-A10,5	19 Kč	ks
43.	94032253PIN DIN0094-3,2X25 STEEL	16 Kč	ks
44.	54803044000BOLT FOR FOOT PED 03	206 Kč	ks
46.	80013046100DISTANCE SPACER 22X8,2X16MM 05	74 Kč	ks
48.	21080003WASHER DIN9021-A 8,4	18 Kč	ks
51.	74003021000BUSHING 8.2 X 12 X 6	112 Kč	ks
52.	625006087GROOVED BALL BEAR. 608 2RS C3	164 Kč	ks
53.	52303053100CHAIN ROLL D=35MM 125-380 99	111 Kč	ks
54.	36003014000LOCK WASHER 8MM	44 Kč	ks
56.	80011056100DISTANCE SPACER 8MM 04	63 Kč	ks
62.	41001052000RUBBER SLEEVE D=12MM	97 Kč	ks
66.	40011166200KEY BLANK BLACK "T" GRIP	332 Kč	ks
69.	58214069051RUBBER GROMMET 16X10,8X3 02	75 Kč	ks
74.	80008014100BRACKET FOR REAR PA RT 2005	289 Kč	ks
76.	44011076200CABLE TIE 200/3,6MM BLACK	4 Kč	ks
92.	8000309200030FRAME PROTECTION L/S BLACK 04	285 Kč	ks
93.	8000309300030FRAME PROTECTION R/S BLACK 04	397 Kč	ks
96.	80006096000TAB FOR FILTER PROTECTION 04	198 Kč	ks
98.	80013094000BRAKE HOSE GUIDE LOWER	146 Kč	ks
