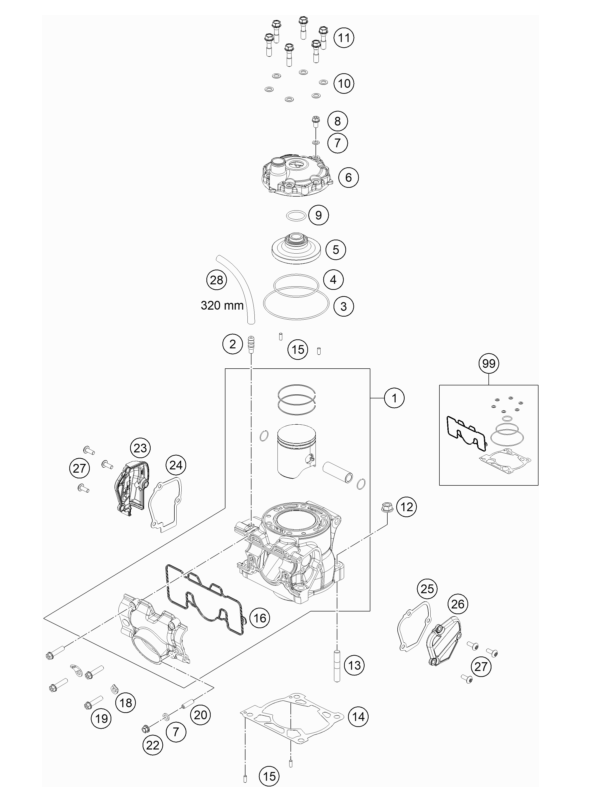

Válec, hlava válce - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	50430038000CYLINDER + PISTON CPL. 125	17 686 Kč	ks
2.	58336020090VACUUM CONNECTION M 6X1	146 Kč	ks
3.	0770890200O-RING 89X2 NBR 70 SH	37 Kč	ks
4.	0770600200O-RING 60X2 FPM 75SH	77 Kč	ks
5.	50430060000COMBUSTION CHAMBER INLAY	753 Kč	ks
6.	50430106000CYLINDER HEAD	3 515 Kč	ks
7.	0603061001CU-SEAL RING DIN7603-6X10X1	32 Kč	ks
8.	0025060106HH collar screw M6x10 TX30	43 Kč	ks
9.	07702300251O-RING 23,00X2,5 NBR 70 SH	29 Kč	ks
10.	0603070121CU-SEAL RING DIN7603- 7,3X12X1	32 Kč	ks
11.	50430079000CYLINDER HEAD SCREW	75 Kč	ks
12.	50330045000HH COLLAR NUT M 8 WS=12	41 Kč	ks
13.	0835080326STUD DIN 835 M8X32	51 Kč	ks
14.	50430035015CYLINDER BASE GASKET 0.15MM	215 Kč	ks
14.	50430035020CYLINDER BASE GASKET 0.20MM	215 Kč	ks
14.	50430035025CYLINDER BASE GASKET 0.25MM	215 Kč	ks
14.	50430035040CYLINDER BASE GASKET 0.40MM	215 Kč	ks
14.	50430035050CYLINDER BASE GASKET 0.50MM	215 Kč	ks
14.	50430035075CYLINDER BASE GASKET 0.75MM	215 Kč	ks
15.	0402040980NEEDLE ROL.DIN5402 NRB 4X9,8	38 Kč	ks
16.	50437046000GASKET CONNECTION FLANGE	225 Kč	ks
18.	51005074000RETAINING PLATE	59 Kč	ks
19.	0025060256HH collar screw M6x25 TX30	43 Kč	ks
20.	0913060203THREAD PIN DIN0913-M 6X20	29 Kč	ks
21.	0603061001CU-SEAL RING DIN7603-6X10X1	32 Kč	ks
22.	77336088106COLLAR NUT M6X1 SW8	59 Kč	ks
23.	5043700700033EXHAUST CONTROL COVER R/S	741 Kč	ks
24.	50437008000GASKET EXH. CONTROL COVER R/S	115 Kč	ks
25.	50437006000GASKET EXH. CONTROL COVER L/S	115 Kč	ks
26.	5043700500033EXHAUST CONTROL COVER L/S	741 Kč	ks
27.	58605083014SCREW M5X14 TORX 25 07	41 Kč	ks
28.	50335030001PVC-HOSE 6X9	169 Kč	ks
99.	50430097000CYLINDER GASKET SET 125/150 16	966 Kč	ks
