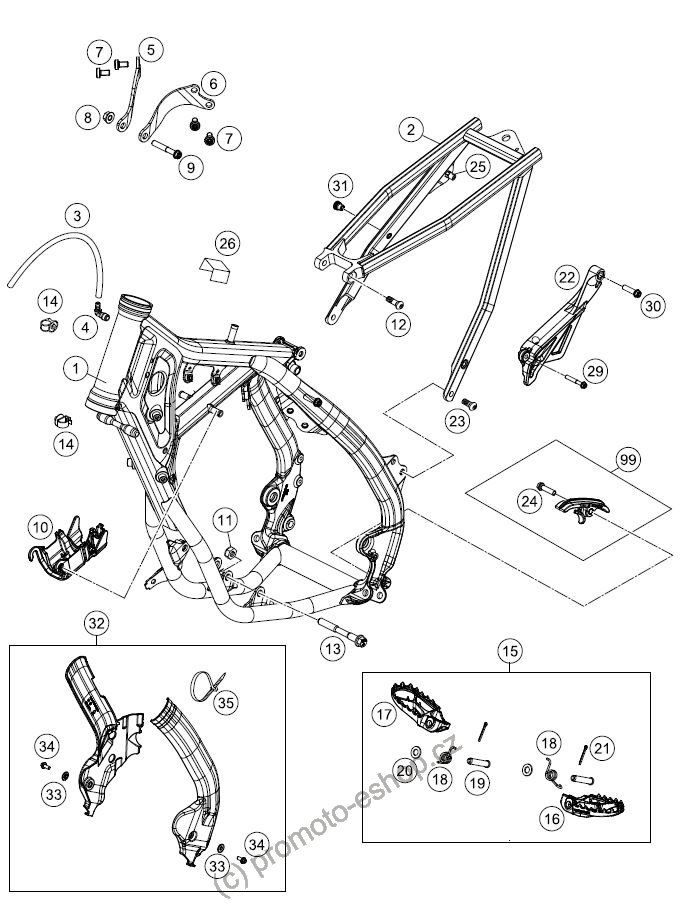

Rám - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	4720300100028Frame "472R3" white	25 680 Kč	ks
2.	47203002000Subframe	7 082 Kč	ks
3.	50307000410ENTL	na dotaz	ks
4.	51030022000ANGLE PIECE 90 DEGREE M10X1	115 Kč	ks
5.	47203014000MOTORSTREBE RECHTS	698 Kč	ks
6.	47203013000Motorbracket left	698 Kč	ks
7.	0035080156SAH-COLLAR SCREW M8X15 TORX45	86 Kč	ks
8.	54310086200SELF LOCKING NUT M8 10.9	44 Kč	ks
9.	0025080506HH collar screw M8x50 TX40	86 Kč	ks
10.	47211095000Cable compartment	458 Kč	ks
11.	54310086100SELF LOCKING NUT M10 CU WS=14	51 Kč	ks
12.	0019080206SFLAT HEAD SCREW M. ISA45 M8X20	86 Kč	ks
13.	47003013000ENGINE BRACKET SCREW 85 SX	206 Kč	ks
14.	57013072100WIRING HOLDER 16MM	68 Kč	ks
15.	79003040033FOOT PEGS SET CPL. 2016	2 183 Kč	ks
16.	79003040000FOOTREST L/S 2016	874 Kč	ks
17.	79003041000FOOTREST R/S 2016	874 Kč	ks
18.	79003044000FOOTREST SPRING R/S 2016	93 Kč	ks
19.	54803044000PIN FOR FOOT PED 51.5X9.8 MM	206 Kč	ks
20.	0125100003washer DIN 125 A 10.5	22 Kč	ks
21.	0094032253PIN DIN0094-3,2X25 STEEL	19 Kč	ks
22.	47203096000Sprocket cover 85	342 Kč	ks
23.	79003003000SPECIAL SCREW M8X18 TORX45 SS	80 Kč	ks
24.	0025080306HH collar screw M8x30 TX40	74 Kč	ks
25.	77303139000BLIND RIVET NUT EM6-60LF/HX	62 Kč	ks
26.	50307012000ADH. FOIL TRANSP. 80X80 MM 04	139 Kč	ks
29.	0025060406HH collar screw M6x40 TX30	43 Kč	ks
30.	0025080256HH collar screw M8x25 TX40	74 Kč	ks
31.	79003002080BLIND RIVET NUT M6 KNURLED	62 Kč	ks
32.	4720309400033frame protection sticker set	728 Kč	ks
33.	54803092060BUSH F. FRAME PROTECTION 03	112 Kč	ks
34.	0014050123HH COLLAR SCREW M 5X12 WS=6	43 Kč	ks
35.	44011076305CABLE TIE 300/4,8MM BLACK	5 Kč	ks
99.	79003053010CHAIN SLIDING KIT BELOW CPL.16	263 Kč	ks
