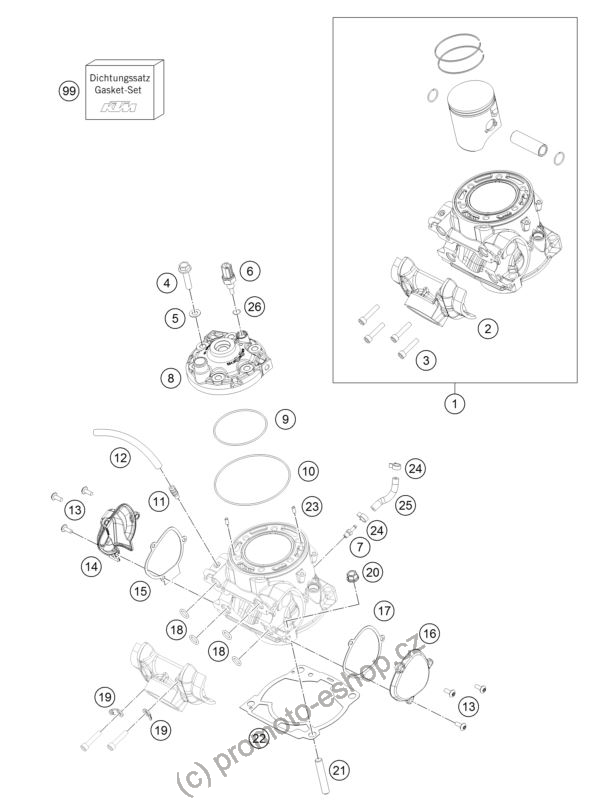

Válec, hlava válce - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	55430038100Cylinder + piston cpl. 18	21 292 Kč	ks
2.	55437001000Connection Flange	6 212 Kč	ks
3.	0912060353AH SCREW DIN0912-M 6X35	29 Kč	ks
4.	54830079000COLLAR SCREW M 8X35 WS=13	75 Kč	ks
5.	56530080000CU-SEAL RING 8 X 16 X 1	41 Kč	ks
6.	79435047000water temperature sensor	738 Kč	ks
7.	55430023000Vacuum connection	146 Kč	ks
8.	55430106100Cylinder head KTM 250 EXC	4 297 Kč	ks
9.	0770730020O-RING 73,00X2,00 VITON	77 Kč	ks
10.	0770105020O-ring 105x2	88 Kč	ks
11.	58336020090VACUUM CONNECTION M 6X1	146 Kč	ks
12.	78015019001HOSE EPA D=6/10 PER METER	na dotaz	ks
13.	58605083014SCREW M5X14 TORX 25 07	41 Kč	ks
14.	5483700710015exhaust control cover rh	741 Kč	ks
15.	55537008000GASKET FOR CONTROL COVER R/S	182 Kč	ks
16.	5483700500015CONTROL COVER L/S 09	741 Kč	ks
17.	55537006000GASKET FOR CONTROL COVER L/S	182 Kč	ks
18.	0770116241O-RING 11,3 X2,4 SILICON	29 Kč	ks
19.	51005074000RETAINING PLATE	59 Kč	ks
20.	55530044000Collar nut M10-SW13 ZnNi	68 Kč	ks
21.	0835100353Stud M10x35	97 Kč	ks
22.	55430030025CYLINDER BASE GASKET	215 Kč	ks
22.	55430030020CYLINDER BASE GASKET	215 Kč	ks
22.	55430030040CYLINDER BASE GASKET	215 Kč	ks
22.	55430030050CYLINDER BASE GASKET	215 Kč	ks
22.	55430030075CYLINDER FOOT GASKET	215 Kč	ks
23.	0402040980NEEDLE ROL.DIN5402 NRB 4X9,8	38 Kč	ks
24.	59007017000CLAMP YDNAC 10096F (9,6MM)	44 Kč	ks
25.	61041095075tube 3,2x9.0 L=75mm	90 Kč	ks
26.	0770100020o-ring 10.00x2.00 silicone	29 Kč	ks
99.	55430097000Gasket set piston 250/300	1 138 Kč	ks
