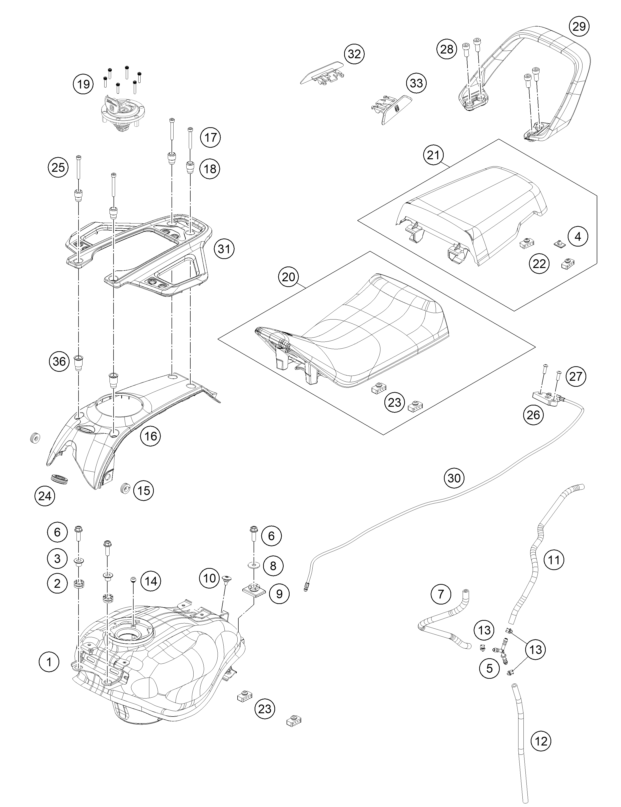

Nádrž, sedlo - zvětšit obrázek

Další schémata:

Nádrž, sedlo - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	28107013000Fuel tank	15 648 Kč	ks
2.	90507013006GROMMET TANK MOUNTING	63 Kč	ks
3.	93008034000Bushing	54 Kč	ks
4.	90507047041SEAT DUMPER SOZIUS SEAT	63 Kč	ks
5.	90507015000CONNECTOR Y SHAPE	65 Kč	ks
6.	J025080253Hexagon screw M8X25	66 Kč	ks
7.	J600000635500Pipe connector	361 Kč	ks
8.	90111060010WASHER PLAIN 8,4X25X2	53 Kč	ks
9.	93007014000Tank guard rear	71 Kč	ks
10.	J031050096Roundhead screw, M5x9	38 Kč	ks
11.	J600000638500Pipe tank expansion-connector	361 Kč	ks
12.	J600000629000Overflow hose, D=6 L=290	300 Kč	ks
13.	J310000801300Hose clamp 12.5 x 8 SW	59 Kč	ks
14.	28107029010Rubber cap, ACF tank connectio	77 Kč	ks
15.	28108057020Rubber bushing spoiler	66 Kč	ks
16.	28108057000KDHUSKVERNA COVER TOP-DARK GALVA	1 667 Kč	ks
17.	J900000604501Hexagon socket screw M6x45	38 Kč	ks
18.	28108057010Bushing ignition lock cover	134 Kč	ks
19.	J900000501600Set screw w.hexagon socket M5x	38 Kč	ks
20.	28107040000Seat	3 653 Kč	ks
21.	28107047000Pillion seat	2 923 Kč	ks
22.	93007047041Seat damper	63 Kč	ks
23.	93007040010Seat cowl pad	65 Kč	ks
24.	28111066010Rubber grommet, ignition lock	94 Kč	ks
25.	J900000605001BOLT SOCKET-M6X1XL50XCL10.9XBL	44 Kč	ks
26.	28107050000Seat lock	885 Kč	ks
27.	90508006003AH SCREW M6X1X20	49 Kč	ks
28.	J912080186Bolt socket-M8x1.25Xl18Xcl8.8X	66 Kč	ks
29.	28112008000Passenger grab handle	1 328 Kč	ks
30.	28107050010cable lock seat	323 Kč	ks
31.	28112010033Baggage carrier compl.	2 318 Kč	ks
32.	28107055000Passenger seat cover right	435 Kč	ks
33.	28107055010Passenger seat cover left	435 Kč	ks
36.	28112010010Collar bushing baggage carrier	120 Kč	ks
