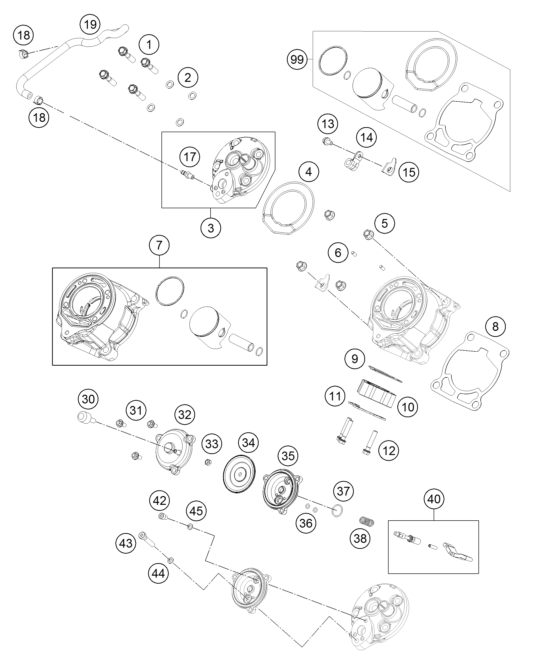

Válec, hlava válce - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	50430079000CYLINDER HEAD SCREW	75 Kč	ks
2.	0603070121CU-SEAL RING DIN7603- 7,3X12X1	32 Kč	ks
3.	46230006000CYLINDER HEAD	2 894 Kč	ks
4.	45230036000CYLINDER HEAD GASKET	176 Kč	ks
5.	46030045000flanged nut M8 WS10	78 Kč	ks
6.	0402040980NEEDLE ROL.DIN5402 NRB 4X9,8	38 Kč	ks
7.	46230038000CYLINDER + PISTON	12 139 Kč	ks
8.	46230035020CYLINDER BASE GASKET 0,2 MM	176 Kč	ks
8.	46230035040CYLINDER BASE GASKET 0,4 MM	176 Kč	ks
8.	46230035050CYLINDER BASE GASKET 0,5 MM	176 Kč	ks
8.	46230035060CYLINDER BASE GASKET 0,6MM	176 Kč	ks
9.	46205004000EXHAUST PIPE FLANGE GASKET	167 Kč	ks
10.	46305003000Exhaust flange 65	603 Kč	ks
11.	46205003050BRACKET FOR SPRINGHOLDER	252 Kč	ks
12.	0025060306SHH collar screw M6x30 TX30	50 Kč	ks
13.	0025050106HH collar screw M5x10 TX30	43 Kč	ks
14.	45001070000BRAKE CABLE CLAMP RSGU 9/12	83 Kč	ks
15.	46332060050RETAINING PLATE CLUTCHHOSE	158 Kč	ks
18.	59007017000CLAMP YDNAC 10096F (9,6MM)	44 Kč	ks
19.	46337014000HOSE EXHAUST CONTROL	643 Kč	ks
30.	46237036044VENTILATION CPL.	256 Kč	ks
31.	0014050163HH COLLAR SCREW M 5X16 WS=6	43 Kč	ks
32.	46337035000Closing cover	643 Kč	ks
33.	0985050003SELF LOCKING NUT DIN0985-M 5	29 Kč	ks
34.	46237013000MEMBRANE	643 Kč	ks
35.	46337011000Flange, exhaust control	766 Kč	ks
36.	0770030015O-RING 3,00X1,50 NBR 70	29 Kč	ks
37.	0770150151O-RING 15,00X1,50 VITON	65 Kč	ks
38.	46237074100ADJ. SPRING - EXHAUST CONTROL	63 Kč	ks
40.	46337020033OUTLET VALVE CPL.	1 307 Kč	ks
42.	0912050083SHCS DIN 912 M5x8	29 Kč	ks
43.	0012060303SCap head screw M6x30-8.8	29 Kč	ks
44.	0603061001CU-SEAL RING DIN7603-6X10X1	32 Kč	ks
45.	0603050901COPPERT GASKET 5X9X1	32 Kč	ks
99.	00050000202PISTON KIT GR.I 65 SX/TC	2 288 Kč	ks
99.	00050000203PISTON KIT GR.II 65 SX/TC	2 309 Kč	ks
