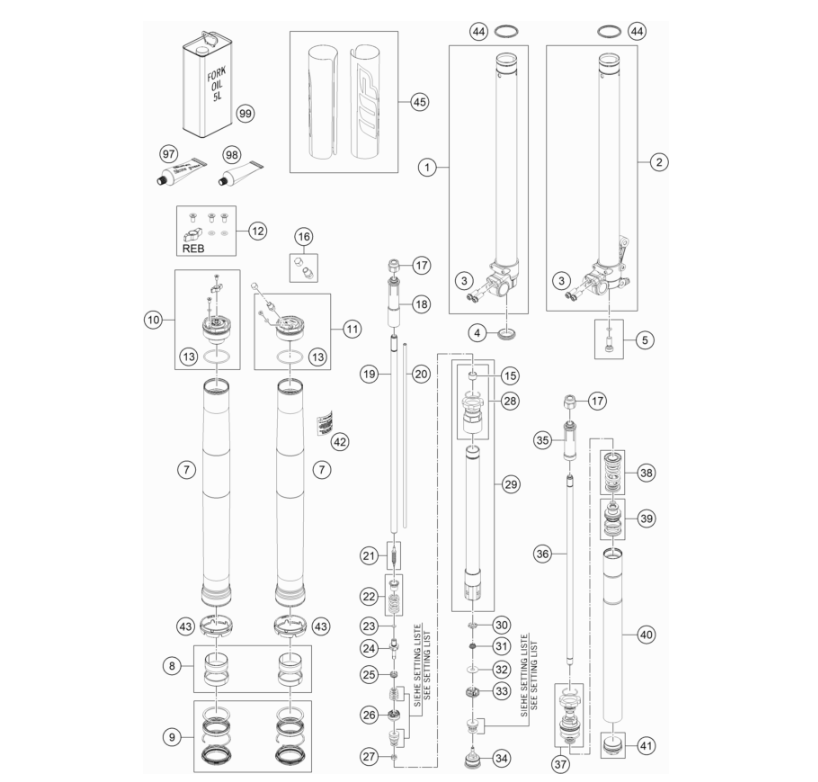

Přední vidlice - rozložená - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	43570818S1Axle clamp right + tube 85SX c	7 304 Kč	ks
2.	43570968S1Axle clamp left + tube cpl.	7 304 Kč	ks
3.	0025080206HH collar screw M8x20	74 Kč	ks
4.	48600141Rubber cap 35x10 NBR80	37 Kč	ks
5.	S218700000S0000HS screw M10x23 cpl.	171 Kč	ks
7.	43570982Fork outer tube 44.13x510 dt49	4 337 Kč	ks
8.	R14042GUIDE BUSHING SET	655 Kč	ks
9.	R513GASKET SET	1 055 Kč	ks
10.	43570928SScrew cap M46x1,5 cpl.	1 646 Kč	ks
11.	43570927Sscrew cap M46x1,5 Luft cpl.	1 646 Kč	ks
12.	RP10021Adjuster kit screw cap	308 Kč	ks
13.	43570023O-ring 41x2 NBR70 siliconized	43 Kč	ks
15.	48600430Guide bushing 12x14x10	170 Kč	ks
16.	48601494SVALVE M8X1 INCL. SCREW CAP	772 Kč	ks
17.	43570859Lock nut M12x1 h20 WAF22	209 Kč	ks
18.	43570856Stop 12,2x25x115	776 Kč	ks
19.	48601811Piston rod 12x477,5	1 587 Kč	ks
20.	43570929adjustment tube 6x445,1	440 Kč	ks
21.	48600277SNeedle 4,5x43,6 cpl.	246 Kč	ks
22.	48600578SSpring (13,9) 37-32 rebound cp	533 Kč	ks
23.	48600299O-ring 6x1,2 NBR70	29 Kč	ks
24.	48600576Tap 6x46 rebound	284 Kč	ks
25.	35480377Spring (11,7) 1,5-8 valve	100 Kč	ks
26.	48602002SMidvalve piston assembly d23	533 Kč	ks
27.	40540486Nut M6x0,5 h6,5 WAF10 rebound	100 Kč	ks
28.	43570936SScrewsleeve M27x0,8 cpl.	1 608 Kč	ks
29.	48600870S7Cartridge tube cpl.	5 061 Kč	ks
30.	48600163Nut valve M6x0,5 h6,5 WAF17	100 Kč	ks
31.	48600202Spring (8,5) l6,5 valve	100 Kč	ks
32.	48600061Shim 8x24x0,40	50 Kč	ks
33.	48601934SPiston 6x27,3x9 compression cp	533 Kč	ks
34.	48600586STap compression cpl.	850 Kč	ks
35.	43570819Stop 12,2x25x78,5	776 Kč	ks
36.	48601501Piston rod 12x470	1 756 Kč	ks
37.	48601452S2Screw sleeve M35,5x0,8	1 325 Kč	ks
38.	48601820S1Spring (22) 60-30 rebound cpl.	533 Kč	ks
39.	43570844SPiston 5x34x31,5 mainpiston Fr	776 Kč	ks
40.	48601571S2Tube incl. mounting 410mm air	2 580 Kč	ks
41.	43570845SAdapter M10xM35,5x0,8x25 cpl.	536 Kč	ks
42.	52000315Sticker warning 60x40	495 Kč	ks
43.	43570915Fork protection ring 55,1mm	209 Kč	ks
44.	43570926Stroke indicator d43 red	170 Kč	ks
45.	52000229SETSticker XAXT AER OC 161x214	523 Kč	ks
97.	T14034Fuchs grease IPR (250g)	856 Kč	ks
98.	00062010053special grease AER Fork 400g	1 058 Kč	ks
99.	48601166S1Fork Fluid Viscosity 4.0 5L	2 731 Kč	ks
